1. The feeder is embedded, occupying no external space and saving customers' site area;

2. The feeder features modular design, enabling convenient, efficient wire changing and easy expansion;

3. Dongshun's original DC control feeder is stable and reliable, eliminating potential safety hazards;

4. Quick-release design for the material pickup head to reduce costs and improve line change efficiency;

5. Set default parameters for various components and flexibly call them from the component library;

6. Implement data-driven management to avoid human errors and achieve high-quality and efficient output;

7. It is equipped with pressure sensing function to automatically detect the insertion status of pins into holes, improving production quality;

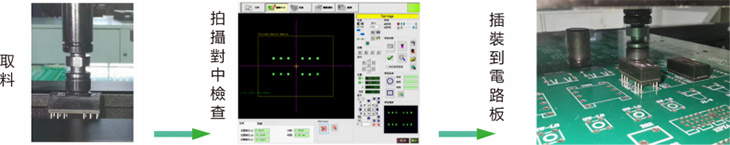

8. It enables multi-mode joint recognition of component polarity by sensors and vision systems, eliminating misidentification, omission, and reverse installation.

9. Intelligent avoidance function, automatically avoiding interference components for insertion.

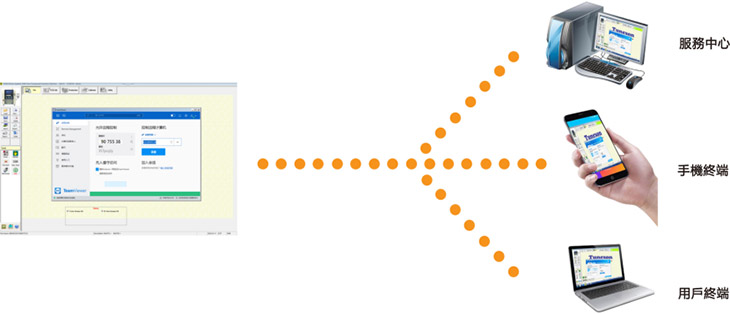

10. Industry 4.0 model enables remote monitoring and data management;

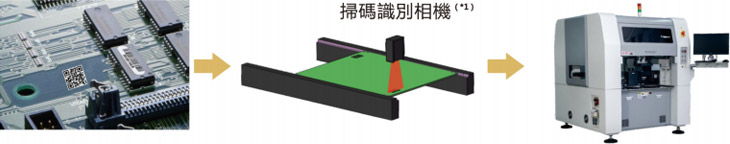

11. Multi-model barcode scanning and identification function enables automatic barcode scanning of PCBs and automatic program switching for production;

12. Basic knowledge of pick-and-place machine software, with an intelligent human-machine operation interface that is simple and easy to learn.

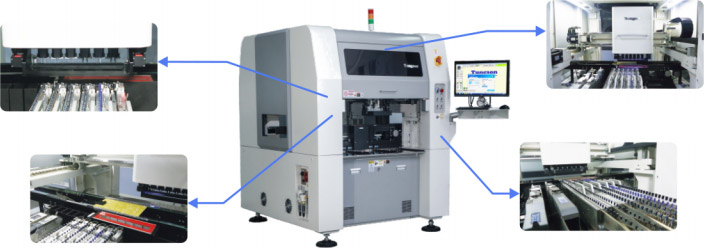

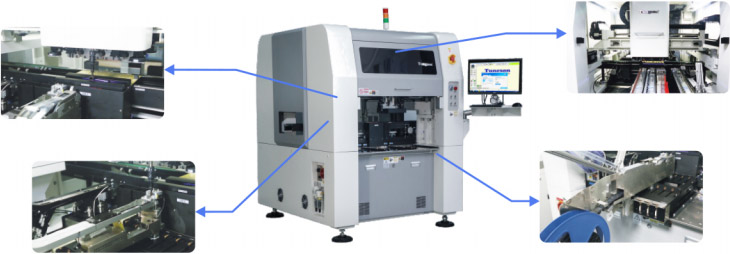

The feeding device of the odd-form component insertion machine can be replaced conveniently and quickly;

◆ The feeder is equipped with a quick-plug connection method, enabling plug-and-play functionality;

◆ It only takes 2 minutes to replace a set of feeder device;

◆ Quick-release connector design allows for nozzle or pneumatic finger replacement in just 20 seconds;

◆ The wire changing time is reduced by 80% compared to similar equipment of other brands;

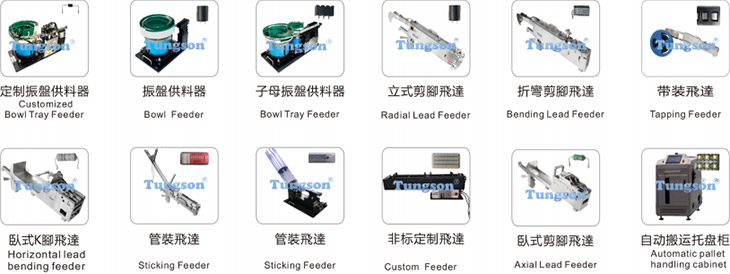

◆ Can be replaced with bulk, tape, tube, cut-lead, or bent-and-cut-lead packaging;

◆ Built-in DC power supply system to prevent safety accidents caused by improper operation by personnel.

The CHP system can monitor various production conditions such as production schedules, efficiency, etc. in real time;

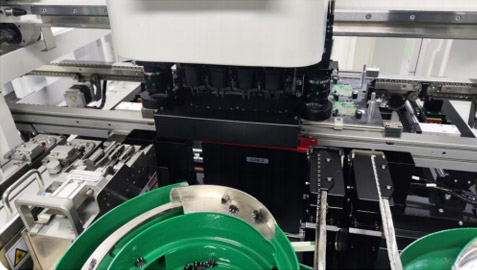

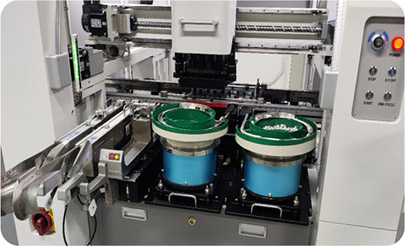

◆ Equipped with a new-generation vibration source intelligent integrated control system;

◆ The reference points and coordinates for PCB panelization can be easily copied, significantly reducing programming time;

◆ It has the function of identifying defective PCBs to avoid wasting components;

◆ Offline programming (*1) can be utilized to preset the feeding configuration and insertion mode of the production line;

◆ PPVC program simulation function for previewing and reviewing the component placement distribution and movement routes.
